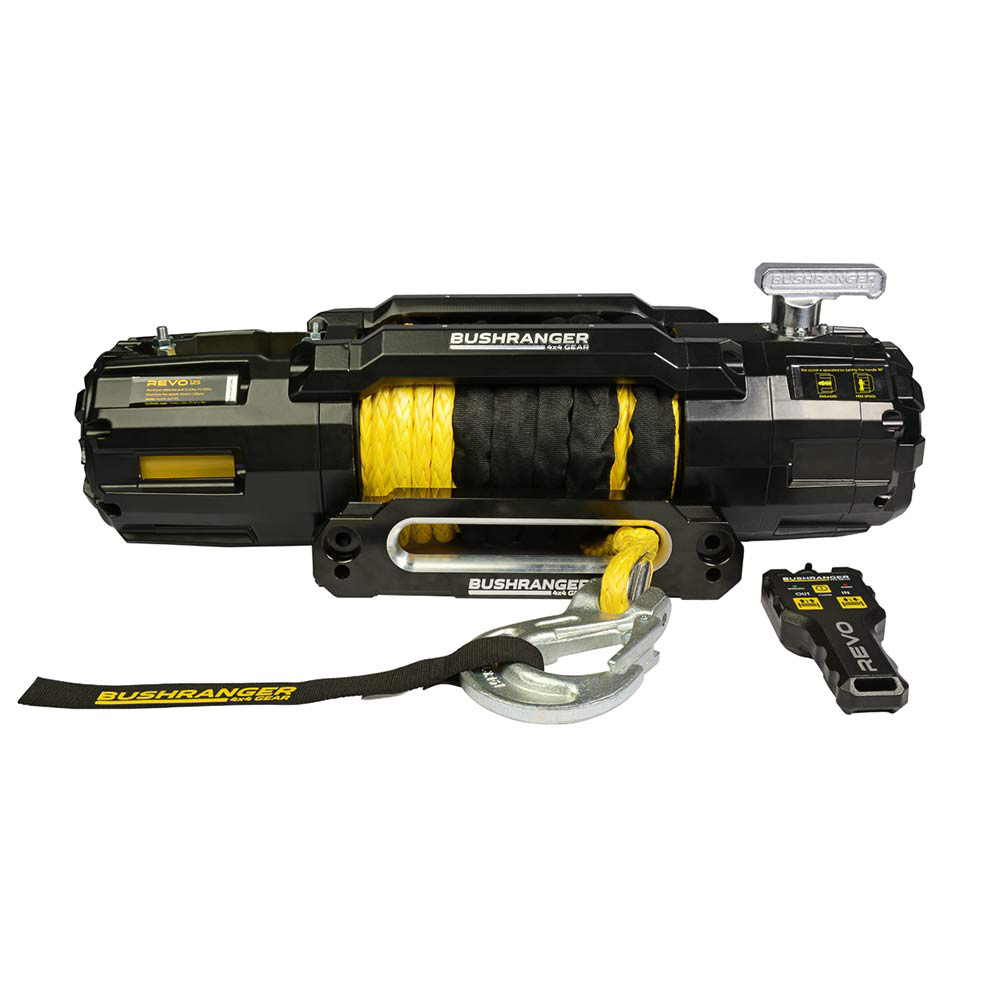

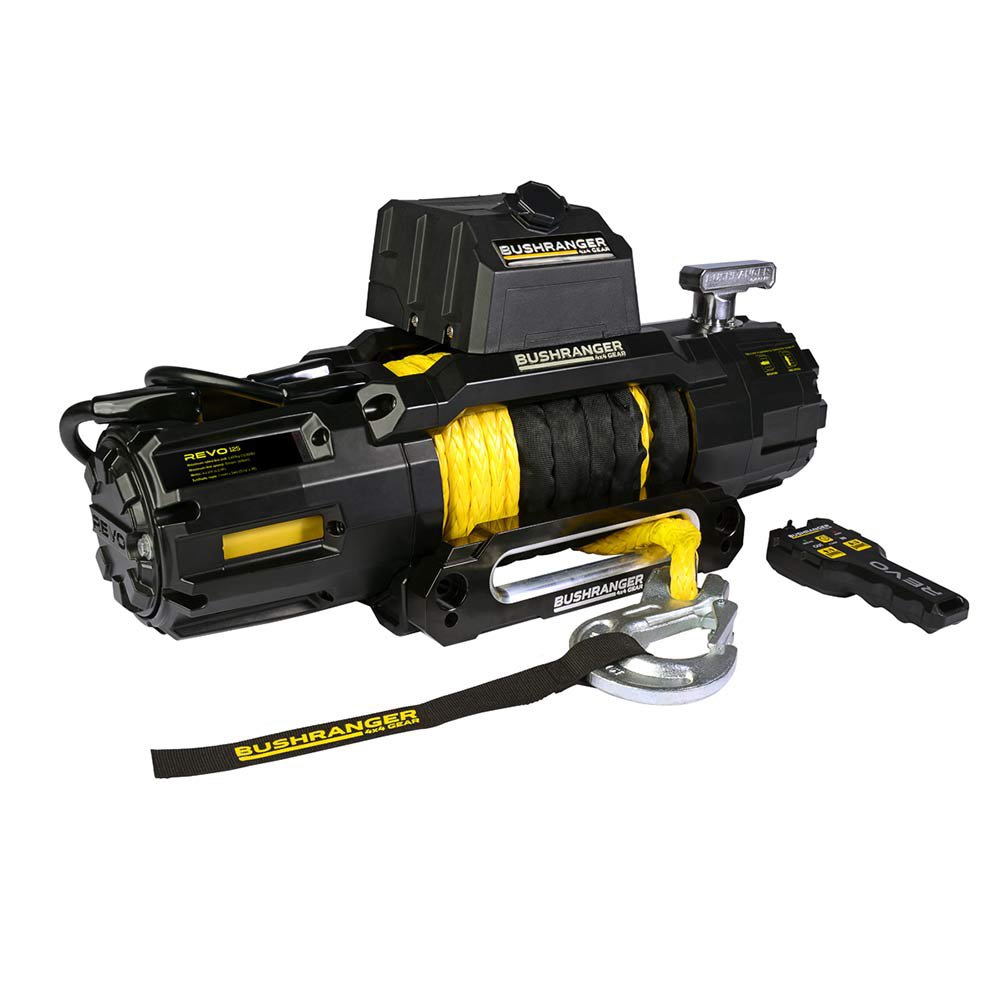

Revo Winch 12,000 lb Synthetic

Brand: Bushranger

Country : Australia
Suitable for : Generic
Warranty : 7 years

Price: ₹159,125 | Offer Price: ₹159,125

Description: REVO winches are designed to be strong, versatile, and ready for anything. Consistently developed and improved, the Bushranger REVO is built with long-term reliability in mind. With a new and improved powder coating, rigorously tested in Australian facilities and real-world conditions, REVO is ready to be pushed to the extreme.

Designed to tackle any challenge, the REVO 12S is packed with tough and reliable features.

Features

                                10mm premium synthetic rope paired with a ½” removable clevis hook
4-stage oversized, externally adjustable gearbox with 16 clockable positions for ease of fitment
Gearbox-mounted braking system, 100% load holding, proportional friction braking system located inside the gearbox, away from the drum – eliminating heat transfer to rope
In-line hawse fairlead made from lightweight aircraft-grade aluminium with an innovative two-position design for greater installation flexibility
Series wound, 12V, 6.2HP motor made with high-grade materials for low current draw and longer life at extreme loads
Spring-loaded clutch for an easy-to-use no-lift style clutch mechanism

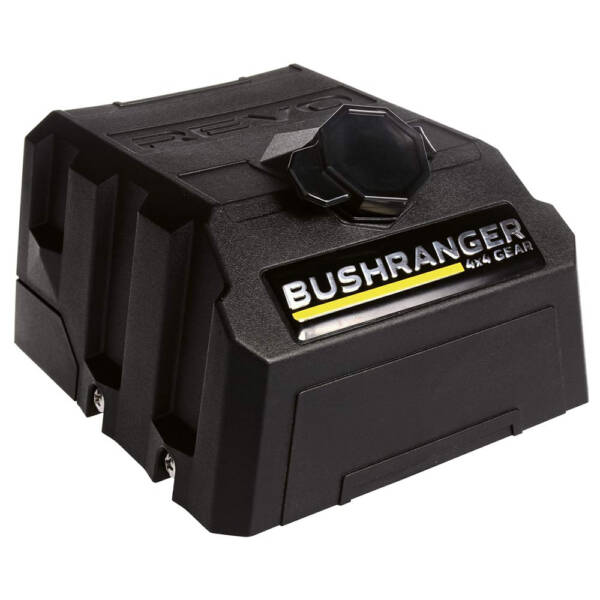

Versatile control box with multiple mounting orientations and an additional mounting bracket for hassle-free installation

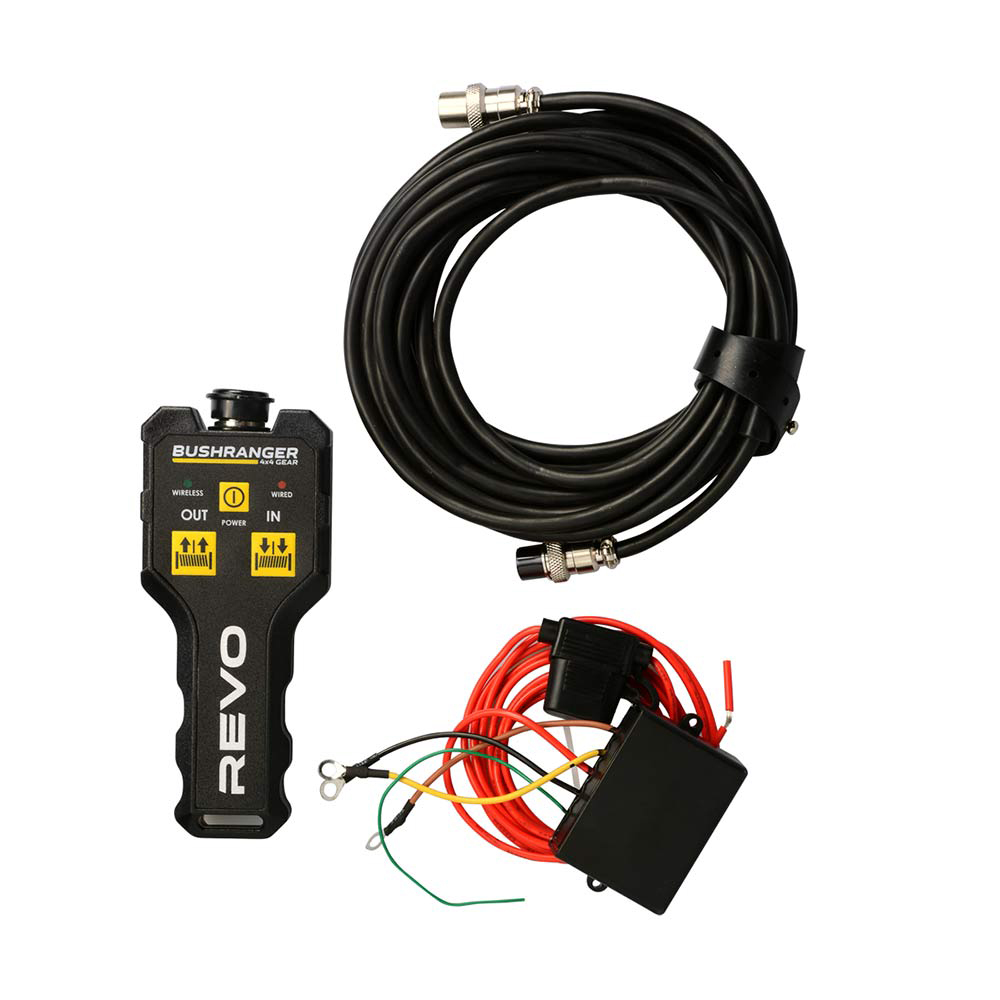

Fully sealed, IP67-rated wireless hand controller with a 433MHz receiver mounted internally in the control box
Zero drag braking system allowing the winch to be powered out under no load without heat build-up, making unspooling a breeze



What's in the box

Revo Winch 12,000 lb Synthetic

Specifications

Attribute	Details
Part Number	RWR120S
Dimensions	602mm (L) x 165mm (W) x 216mm (H) (excludes control box)
Rated Line Pull (single)	12,000lbs (5,443kg)
Motor	Series wound, 12V, 6.2HP (4.6kw)
Remote Control	Two functions, hand controller (Wireless, 30m range) (Wired, 5m lead)
Electrical	Contactor IP67 500A
Gear Train	4-stage gear driven
Gear Ratio	171:1
Clutch (freespooling)	Rotating Ring Gear
Brake	Gearbox Mounted, Proportional Friction Brake System
Drum Diameter/Length	63.5mm x 244mm
Mounting	Bolt Pattern 254mm x 114mm
Rope	11mm x 24m Synthetic Rope
Fairlead	Two-position Aluminium Hawse Fairlead
Recommended Battery	650CCA minimum
Battery Leads	1850mm
Finish	Black Powder Coat
Mechanical Warranty	Limited Lifetime
Electrical Warranty	7 years
Waterproof Rating	IP67
Certification	CE, IP67
Winch Weight	35kg
